Clustering strategies

Clustering groups cells by their poly(A) site (PAS) usage patterns so that downstream differential APA tests have biologically meaningful contrasts. The input to every clustering strategy is an AnnData object whose rows are cells and whose columns are PAS peaks (cells x PAS). The output is the same AnnData with obs["leiden"] populated and obsm["X_umap"] computed for visualization.

Each strategy implements three internal phases executed by the orchestration layer in ema/clustering/clustering.py: normalize, reduce_dims, and cluster. Researchers interact with the strategy only through CLI flags or YAML keys; the three-phase split is an implementation detail.

---

leiden_tfidf

Question: Which groups of cells share a similar pattern of poly(A) site usage across the transcriptome, treating each PAS as a "word" and each cell as a "document"?

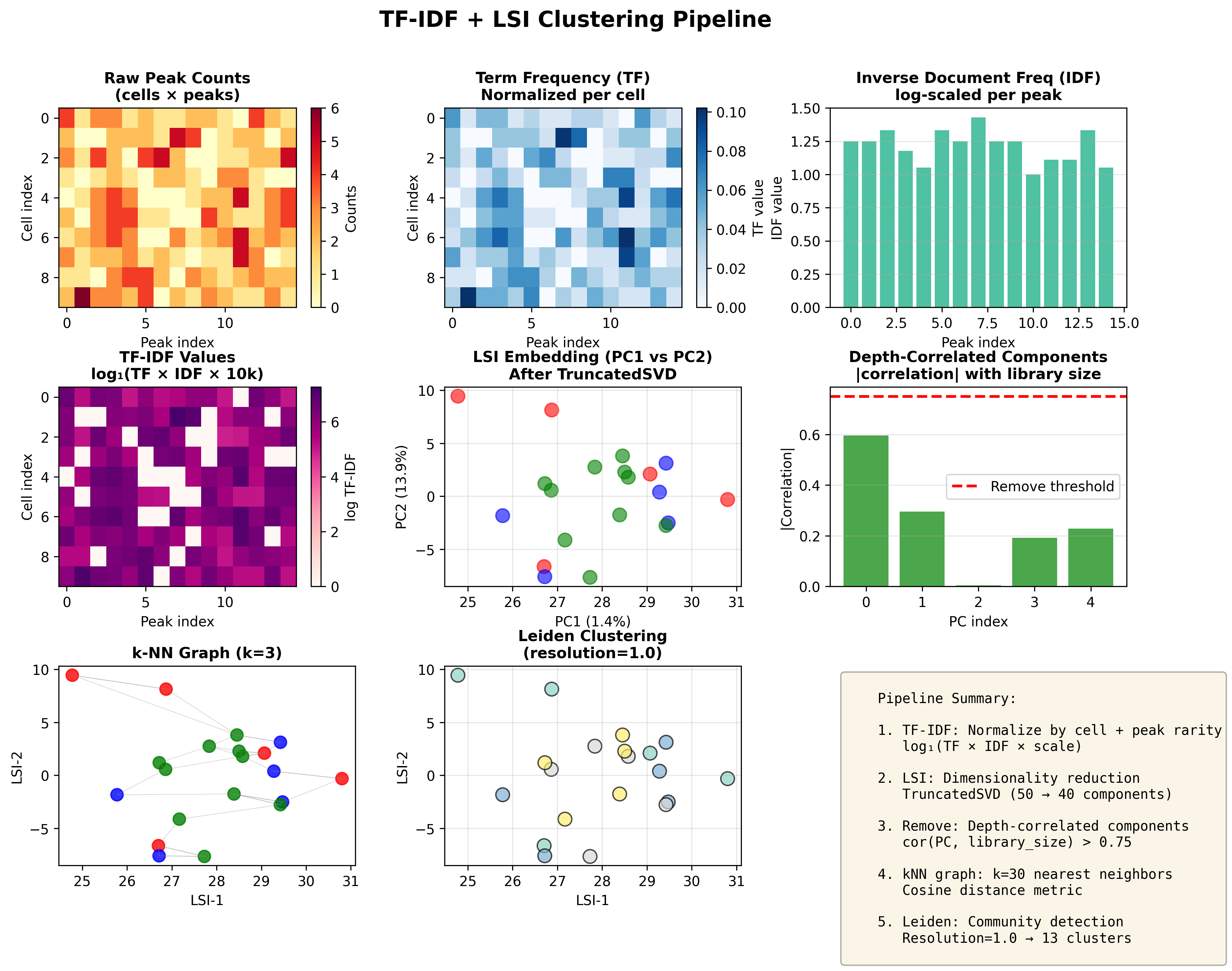

Algorithm

1. Compute total read counts per cell and store in obs["total_counts"].
2. Apply Signac Method 1 TF-IDF: for each cell-PAS entry, TF = count / cell_total and IDF = n_cells / cells_with_this_PAS. The transformed value is log1p(TF * IDF * scale_factor).
3. Run Truncated SVD (randomized algorithm) to produce an LSI embedding of shape (n_cells, n_components). L2-normalize each row.
4. Remove LSI components whose Pearson |r| with total read counts exceeds depth_corr_threshold. This is the ArchR-style depth-correlation filter that prevents sequencing depth from driving cluster separation.
5. Build a cosine-distance k-nearest-neighbor graph on the filtered LSI embedding using n_neighbors neighbors across n_dims dimensions.
6. Run UMAP for 2-D visualization and Leiden community detection (flavor=igraph, n_iterations=2, undirected) at the specified resolution.

Inputs and outputs

Inputs:

• AnnData with X = sparse (cells x PAS) count matrix
• Requires at least 3 cells and 3 PAS (raises ValueError otherwise)

Outputs stored in AnnData:

Key	Location	Content
total_counts	obs	Pre-normalization read sum per cell
X_lsi	obsm	L2-normalized LSI embedding after depth-correlation filtering
lsi_kept_components	uns	Array of component indices that passed the filter
lsi_variance_ratio	uns	SVD explained variance ratios
leiden	obs	Cluster label strings
X_umap	obsm	2-D UMAP coordinates

Tunable hyperparameters

Parameter	Default	CLI flag	YAML key	Description
resolution	1.0	--resolution	resolution	Leiden resolution. Higher values produce more, smaller clusters.
n_components	50	--n-svd-components	n_svd_components	SVD components computed before depth-correlation filtering.
n_dims	40	--n-pcs	n_pcs	LSI dimensions passed to the kNN graph (must be <= n_components).
n_neighbors	30	--n-neighbors	n_neighbors	kNN graph size. Larger values smooth cluster boundaries.
scale_factor	10000	--tfidf-scale-factor	tfidf_scale_factor	TF-IDF scale factor. Adjust when counts have very different dynamic range.
depth_corr_threshold	0.75	--depth-corr-threshold	depth_corr_threshold	Pearson
random_seed	42	--random-seed	random_seed	RNG seed for SVD and Leiden.

Interpretation

A well-formed result has clusters of varying sizes (not all cells in one cluster, not every cell its own cluster). Inspect cluster_sizes and umap figures. If you see one giant cluster and many singletons, lower resolution. If clusters look random on the UMAP (neighboring cells in different colors), raise n_neighbors or lower depth_corr_threshold.

The lsi_kept_components key in .uns tells you how many components survived depth filtering. If fewer than 5 survive, your data may have strong library-size confounding; try leiden_libsize instead.

Limitations

• PAS counts have higher dynamic range than scATAC (0-100+ vs 0-3). The sublinear_tf=True approach (log1p on the TF term) is implicit in the Signac Method 1 formula but does not fully account for very high-count PAS.
• Leiden clustering is non-deterministic across versions of the igraph C library even with a fixed seed. Use random_seed for reproducibility within a single software environment.
• With fewer than ~200 cells, depth-correlation filtering may remove too many components. Set depth_corr_threshold=1.0 to disable it.

---

leiden_libsize

Question: Which groups of cells share similar PAS usage, using the conventional scRNA-seq normalization pipeline?

Algorithm

1. Library-size normalize each cell to target_sum=10,000 (CPM-equivalent), then apply log1p.
2. Select the top n_top_hvg highly variable PAS using min_mean=0.005, max_mean=5, min_disp=0.3. Subset the matrix to these PAS.
3. Scale each PAS to zero mean and unit variance (capped at max_value=10).
4. Run PCA to n_comps components.
5. Build a Euclidean kNN graph on n_pcs PCA dimensions with n_neighbors neighbors.
6. Run UMAP and Leiden (same settings as leiden_tfidf).

Inputs and outputs

Inputs:

• AnnData with X = sparse (cells x PAS) count matrix

Outputs stored in AnnData:

Key	Location	Content
X_pca	obsm	PCA embedding
leiden	obs	Cluster label strings
X_umap	obsm	2-D UMAP coordinates

Tunable hyperparameters

Parameter	Default	CLI flag	YAML key	Description
resolution	1.0	--resolution	resolution	Leiden resolution.
n_comps	50	--n-svd-components	n_svd_components	PCA components computed before the kNN step.
n_pcs	40	--n-pcs	n_pcs	PCA components used for the kNN graph (must be <= n_comps).
n_top_genes	2000	--n-top-hvg	n_top_hvg	Highly variable PAS selected before PCA.
n_neighbors	10	--n-neighbors	n_neighbors	kNN graph size.
random_seed	42	--random-seed	random_seed	RNG seed.

Interpretation

This strategy uses a smaller default n_neighbors (10 vs 30) because PCA Euclidean distances behave differently from cosine LSI distances in high dimensions. If UMAP looks overly fragmented, raise n_neighbors to 20-30.

HVG selection can exclude informative PAS if n_top_hvg is too small. For experiments with few cells (< 500), consider raising min_mean slightly or disabling HVG selection by setting n_top_hvg to the full feature count.

Limitations

• Library-size normalization assumes all cells have similar total transcript content. When cells differ dramatically in capture efficiency (a known problem in poly(A) sequencing), leiden_tfidf is preferred.
• PCA is sensitive to outlier PAS with very high variance after scaling (clipped at max_value=10). Verify the peak_qc figure first.

---

external

Question: How do pre-computed cluster labels from a gene-expression analysis (Seurat, Scanpy, CellRanger) align with PAS usage patterns?

Algorithm

1. Apply a light log-normalization (normalize_total + log1p) solely to produce a meaningful UMAP for visualization. No dimensionality reduction drives the cluster labels.
2. Run PCA to up to 50 components for UMAP only.
3. Load the user-provided CSV file: column 0 = cell barcode, column 1 = cluster label (no header expected).
4. Match barcodes between the AnnData and the CSV. Cells with no matching barcode receive the label "unassigned".
5. Assign matched labels to obs["leiden"] as a Categorical.
6. Build a kNN graph and compute UMAP for visualization.

Inputs and outputs

Inputs:

• AnnData with X = sparse (cells x PAS) count matrix
• CSV file at labels_path: two columns (barcode, cluster), no header

CSV format:

ACGTACGTACGT-1,T_cell
TTGATCGATCGA-1,B_cell
GGCATCGATCGA-1,Monocyte

Outputs stored in AnnData:

Key	Location	Content
leiden	obs	Cluster labels from CSV (or "unassigned")
X_umap	obsm	2-D UMAP coordinates for visualization

Tunable hyperparameters

Parameter	Default	CLI flag	YAML key	Description
labels_path	required	--external-clusters	external_clusters	Path to the two-column CSV file. No default; the strategy raises ValueError if absent.
random_seed	42	--random-seed	random_seed	RNG seed for UMAP.

Interpretation

Cells labeled "unassigned" appear in the UMAP but are excluded from differential APA tests. A high fraction of unassigned cells (> 10-20%) usually means a barcode format mismatch (e.g., the CSV has sample_ACGT while the h5ad uses ACGT-1). Check the barcode convention with adata.obs_names[:5] vs the first column of the CSV.

Limitations

• Requires barcode-level overlap between the gene-expression clustering and the PAS count matrix. Barcodes are matched by exact string equality after AnnData loading; no prefix stripping is applied.
• UMAP computed from PCA on log-normalized PAS data will not necessarily match the UMAP from the source gene-expression analysis. Use it only as a layout for coloring by the imported labels, not for interpreting PAS structure.
